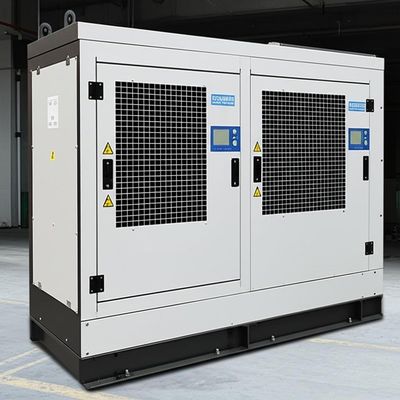

Liquid Cooled Photovoltaic Energy Storage System 261kWh Modular Energy Storage
| MOQ: | 1 |
| Price: | 700-7000 USD per set |
| Standard Packaging: | Standard Packaging |
| Delivery Period: | Expected shipment within 30 days after successful payment |
| Payment Method: | D/P T/T |
| Supply Capacity: | 5000 units per year |
Detail Information
Place of Origin
Shenzhen, Guangdong, China
Brand Name
HUAHUI
Certification
UN38.3、UL、CE、KC、FCC、PSE、FDA and MSDS
Type:
Energy Storage Cabinet
Product Name:
Electrical Energy Storage
Application:
Industrial And Commercial
Feature:
Waterproof
Advantage:
High Efficiency, Energy Saving
Design:
Modular Design
Highlight:
Liquid Cooled Photovoltaic Energy Storage
,Photovoltaic Energy Storage System 261kWh
,261kWh Modular Energy Storage
Product Description
Liquid Cooled Photovoltaic Energy Storage System 261kWh Modular Energy Storage
261kWh liquid cooled Photovoltaic Energy Storage system
We offer a wide range of energy storage cabinet products and can tailor solutions and products to meet your specific needs. You are welcome to reach out via email or WhatsApp for inquiries. We are committed to providing you with assistance.
Product Introduction
- Industrial and commercial energy storage system - a fully integrated pre-configured solution suitable for photovoltaic energy, industry and commerce, power grids, power plants, charging stations, and public services
- Off-grid microgrid systems for areas with unstable electricity, villas, farms, islands, oil extraction, and other areas without electricity. Main functions include self-use, emergency backup power, oil engine management, and wind turbine management
- Ideal for industrial and commercial microgrid energy storage solutions, providing efficient and reliable power for small and medium-sized enterprises and businesses. Capacity can be expanded through parallel cabinet connections
Product System Diagram
01 Cooling air duct
06 Fire Protection System
02 Air conditioning system
07 EMS Display Screen
03 Battery PACK
08 EMS host
04 High voltage BMS
09 PCS
05 High Voltage Box
10 Distribution System
Product Selection and Configuration
Air-Cooled Energy Storage Cabinets
| PRODUCT MODEL | HH-906868 | HH-136868 | HH-167676 | HH-209595 | HH-259595 | HH-211111 | HH-251919 | HH-211711 |
|---|---|---|---|---|---|---|---|---|
| Capable of installing battery capacity | 10-15kWh | 20-25kWh | 30-35kWh | 45kWh | 55kWh | 100kWh | 100kWh | 200kWh |
| External dimensions H * W * D | 900*680*680 | 1300*680*680 | 1600*760*760 | 2050*950*950 | 2500*950*950 | 2100*1050*1050 | 2500*1850*1150 | 2100*1650*1050 |
| Internal dimensions H * W * D | 750*600*600 | 1100*600*600 | 1400*700*700 | 1800*800*800 | 2300*800*800 | 1950*940*940 | 2300*1700*1000 | 1950*1540*940 |
| PCS | 3-5kW | 8-10kW | 8-10kW | 10-20kW | 20-30kW | 50kW | 50kW | 100kW |
Liquid Cooled Energy Storage Cabinets
| PRODUCT MODEL | HH-221313-A | HH-221313-B | HH-229613 |
|---|---|---|---|
| Capable of installing battery capacity | 325kWh | 232kWh | 232kWh |
| External dimensions H * W * D | 2265*1330*1330 | 2265*1330*1330 | 2265*960*1330 |
| Internal dimensions H * W * D | 2100*1240*1240 | 2100*1240*1240 | 2100*890*1240 |
| PCS | 100kW | 100kW | 100kW |
Detailed Product Parameters
325kWh Liquid Cooled Energy Storage Cabinet
| PRODUCT MODEL | HH-231313-01 |
|---|---|
| Product size | H*W*D 2300*1350*1350 |
| Product Capacity | 325kWh |
| Battery configuration | 7 46.4kWh liquid cooled PACKs |
| Cabinet material | Steel plate/stainless steel |
| Protection grade | IP55/IP66 |
| Heat dissipation method | Liquid cooled air conditioner |
232kWh Liquid Cooled Energy Storage Cabinet
| PRODUCT MODEL | HH-221212-01 |
|---|---|
| Product size | H*W*D 2200*1220*1220 |
| Product Capacity | 232kWh |
| Battery configuration | 5 46.4kWh liquid cooled PACKs |
| Cabinet material | Steel plate/stainless steel |
| Protection grade | IP55/IP66 |
| Heat dissipation method | Liquid cooled air conditioner |
400-430kWh Air-Cooled Energy Storage Cabinet
| PRODUCT MODEL | HH-223112-01 |
|---|---|
| Product size | 400kWh: 2200*3100*1200 | 430kWh: 2350*3200*1000 |
| Product Capacity | 400-430kWh |
| Battery configuration | 28-30 pieces of 48V280AH |
| Cabinet material | Steel plate/stainless steel |
| Protection grade | IP55/IP66 |
| Heat dissipation method | Intelligent air conditioning |
Main Features
Security
- Software+hardware+electrical, multi-level protection
- Independent cabinets achieve electrical and fire safety isolation, preventing accident spread
- Convert DC convergence to AC convergence to prevent DC arcing
Efficient
- Cluster by cluster management, eliminating parallel losses and improving energy storage revenue
- PCS three-level topology with maximum efficiency of 99%
High Integration
- Integrated: battery+BMS+PCS+EMS+fire protection+temperature control
Easy to Use
- Rapid deployment with decentralized deployment and centralized scheduling
- Distributed design, easy to expand, supports parallel connection of multiple cabinets on AC side
- Fully modular design for easy maintenance
- Cloud monitoring and mobile app support
